Alarm Clock

Features

The alarm clock described on this page is a large example application that uses many of the classes in the provided libraries: LCD, Form, Field, SoftI2C, DS1307RTC (or DS3232RTC), Melody and PowerSave. The clock has the following features:

• Displays both the time and date.
• 12 hour and 24 hour time display modes.
• Up to 4 configurable alarm times, plus a snooze alarm.
• Three alarm sounds to choose from.
• Configurable alarm timeout between 2 and 10 seconds.
• Single button to activate the back light and/or stop the alarm.
• Up, down, left, and right buttons to change clock settings.

Main circuit

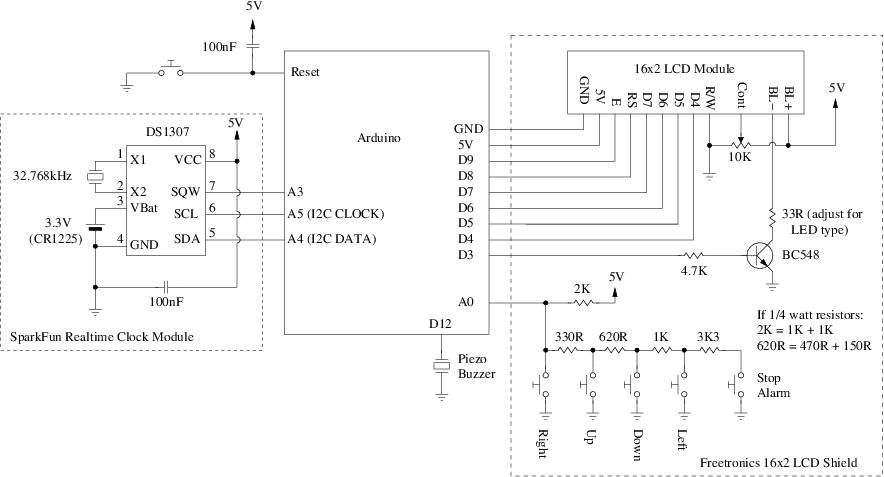

The main clock circuit consists of an Arduino Uno compatible board, a 16x2 LCD module, a realtime clock chip, and a piezo buzzer for the alarm:

Some of the components can be purchased ready-made as the Freetronics 16x2 LCD Shield and the SparkFun Realtime Clock Module. I used the ready-made realtime clock module, but made my own equivalent to the LCD shield from parts to aid in spacing out the LCD and pushbuttons on the exterior of the box. The value of the 33R resistor may need to be adjusted for different types of back light LED's. See below for information on using a DS3232-based clock module instead of a DS1307-based module.

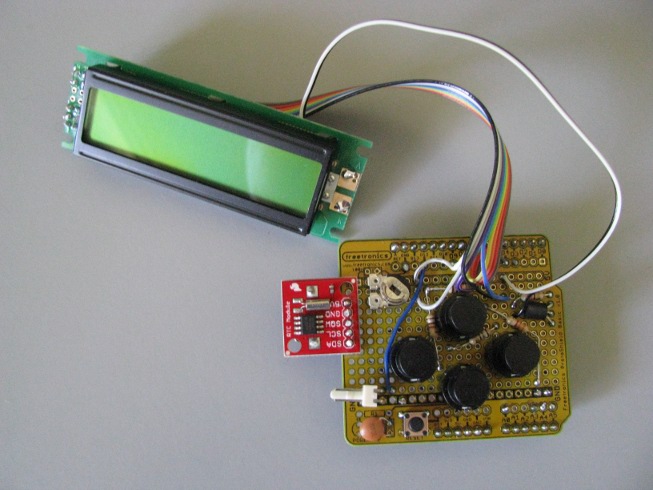

The whole circuit is built on a prototyping shield, with ribbon cables connecting to the LCD. The Stop Alarm button and piezo buzzer are not shown in this picture and some of the components are soldered to the bottom of the shield:

The clock module is based on the DS1307 chip and has an on-board coin battery to keep the time and date ticking over even if the main circuit loses power. The chip is I2C-based and has an auxillary SQW output that can be configured to provide a 1 Hz squarewave signal. This signal is used by the software running on the Arduino to detect when a new time or date is available for display on the LCD. The DS1307RTC class takes care of the details of talking to the chip via I2C.

Arduino board

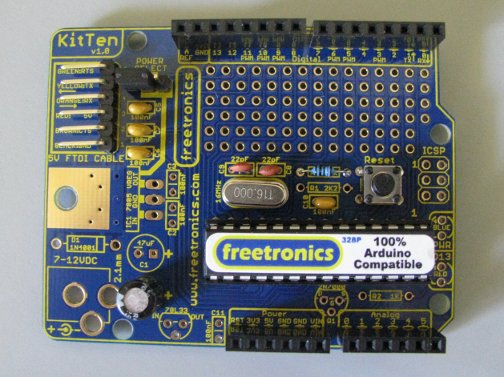

To keep power consumption low, say for being powered by batteries, we don't need a full Arduino Uno or similar board. The USB interface is unnecessary, as is the on-board power supply if there is an external source of 5 volt power. We also don't want the power and D13 status LED's to be draining power. Therefore, a cut-down version of the Arduino is recommended. We used the KitTen kit from Freetronics, and didn't solder up anything that wasn't strictly necessary. A 5v FTDI USB-to-Serial cable is necessary for programming. Similar minimalistic built-it-yourself Arduino designs should also work.

Using DS3232 instead of DS1307

For clock modules based on the DS3232 chip, such as the Freetronics Real Time Clock Module, change the Clock typedef in Clock.h to the following:

typedef DS3232RTC Clock;

The pads on the Freetronics module should be connected to the Arduino as follows:

• VCC and GND connected to 5V and GND on the Arduino.
• SQI connected to A3.
• SDA connected to A4.
• SCL connected to A5.
• BAT, 32K, and RST left unconnected.
